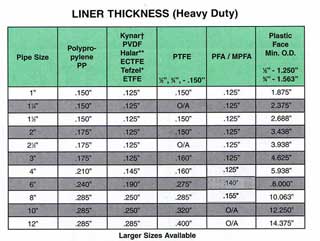

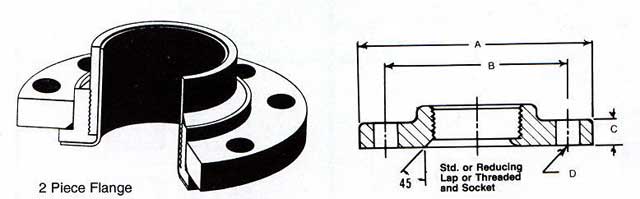

PIPE FLANGES AND LINER SPECIFICATIONS PIPE SCHEDULE 10-80 Carbon steel Stainless steel (304 or 316) Ductile iron pipe-for underground. Click image for larger view Pipe grade may be E.R.W. (electric resistance welded) ASTM A-587, low carbon steel for the chemical industry, A-53 or A 106 seamless, standard wall unless specified otherwise. 20'0" max. length. Vacuum Capabilities Polypropylene - Full thru 8" larger depending on temperature. Kynar, Halar, ETFE • Full thru 8" PTFE-Full thru 12" MPFA / PFA - Full. thru 4", larger, depending on temperature. Consult Factory for other ratings. Click image for larger view FLANGES (All dimensions in inches) Pipe flanges ductile iron or forged steel. Galvanized or stainless also. 150 Ib. ANSI ductile iron flanges conform to ASTM A-395 or A-536. 150 lb. and 300 Ib. ANSI. or higher pressure rated forged steel flanges conform to ASTM A-105. Click image for larger view Click image for larger view
